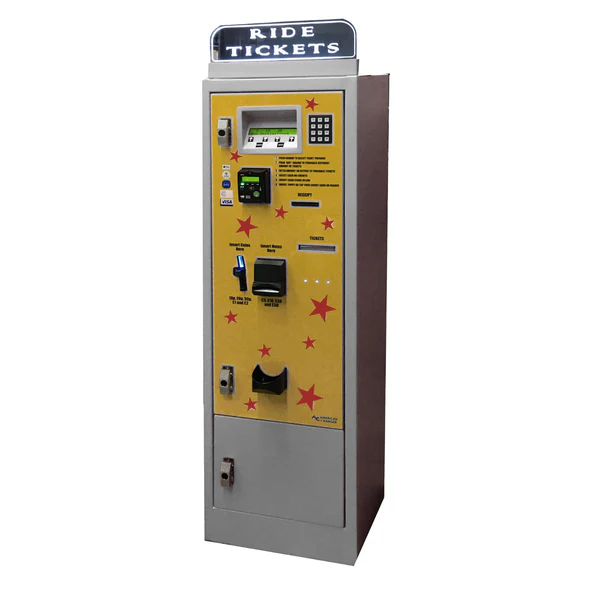

Triple Ticket Dispenser: holds 18,000 tickets in total.
Validator accepts: $1, $5, $10, and $20.
Hopper: Holds 1,600 quarters/tokens or 1,000 one coins.
Stacker capacity: 700 notes.
Credit Card Reader. Turnkey operation: We can help you find a credit card processor for this model that is PCI compliant in the United States and Canada.
Compliant processors for all other countries can be addressed on an individual basis.
Features
- Credit Card Reader: Accepts Visa, Master Card, and American Express Turnkey operation includes optional processing company
- Validator Accepts: $1, $5, $10, $20
- Stacker capacity: 700 bills
- Triple Ticket dispenser offering 18,000 tickets total
- Ticket Dimensions 1-5/32″ W x 2″ L
- High Security $1 coin/quarter acceptor
- Unlimited bonus payouts
- Keypad & LCD display
- Four programmable selections
- Receipt and audit printer
- (Actual Dimensions) H-65″ x D-14″ x W-18″
- (Actual Weight) 133 Lbs.
- AVAILABLE FOR INTERNATIONAL MARKETS
- MADE IN U.S.A.
Specifications
| 1- Credit Card Reader: | Can accept American Express, Discover, Master Card & Visa using NAYAX system |
| 1-Bill/Banknote Validator and Stacker: | Base unit includes Astro brand bill/banknote validator. Accepts most world currencies. Stacker holdes up to 700 notes. Accepts $1, $5, $10, $20 |
| Coin Acceptor: | Microcoin SP Brand coin acceptor. Programmable to accept different coins |
| 1-Hopper: | Holds up to 1,00 quarters/tokens or 1,100 $1 coins. Hopper dispenses 4 coins per second on average. Hopper capacity may be reduced using different coins or validators |
| 1-Ticket Dispenser: | Triple ticket dispenser holds up to 6,000 tickets per bin (18,000 tickets total |
| Ticket Sizes: | Ticket Dimensions 1-5/32″ W x 2″ L (OR) 2.9 W x 5.1 L centimeters |
| Receipt/Audit Printer: | Provides customers receipt and prints out audit information |
| LCD Display: | 4 programmable price points with unlimited bonus payouts available. Prompt choices in English (US). Other languages available per custom programing |
| 1-Control Board/Power Supply/Electrical Configuration: | Switchable input: 115/230 volt, 50/60 Hz. Various plug configurations. Power consumption: Board 10W max, Hopper 22W max, Validator 50W max |
| Ambient Temperature for Field of Use: | 41° to 122° Fahrenheit or 5° to 50° Celsius |
| Decal and Marquee: | As seen in picture. LED Lexan Marquee. Customizable |
| Locking System: | 3 x Screw in T-Handle with Locks/Keys |
| Cabinet Construction: | 14 gauge welded steel; Door is 14 gauge welded steel |
| Cabinet Finish: | Red powder coat. Custom colors are available |
| Dimensions: | 18 W x 65 H x 14 D inches or 45.7 W x 65 H x 35.6 centimeters |
| Actual Weight: | 133Lbs. Or (60.3 Kg) |
| Shipping Weight: | 157 lbs. |
| Shipping Length: | 36″ |
| Shipping Width: | 36″ |
| Shipping Height: | 70″ |
